1. Features features and product advantages

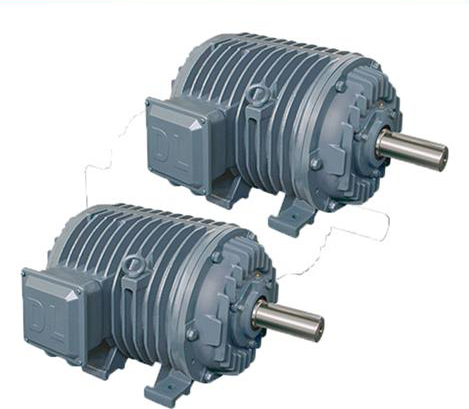

DMPG series frequency conversion three-phase asynchronous motor has large load-bearing capacity, high mechanical strength, wide range of speed regulation, wide popularity. It is suitable for working conditions when needing regular braking and adjusting frequency conversion speed.

2 . Main specifications

• DMPG series three-phase asynchronous motor is installed the same size as IEC standard and its installation dimensions are identical to Y2 series three-phase asynchronous motor. The main performance is as follows:
• Rated voltage 380V, rated frequency 50Hz, voltage and frequency can also be determined according to needs;
• Motor frequency conversion range is 1 ~ 100Hz. 1 ~ 50Hz is the constant torque speed regulation and 50 ~ 100Hz is the constant energy speed regulation. It is also suitable for non-frequency conversion occasions or to define the lateral frequency range as required by the user.
• The motor can be operated in S1 ~ S9 working mode. Data in the data sheet created continuously by source S1 is for reference only when the user chooses the model;
• The motor insulation class is F class, and can also be fabricated for H class when needed. The degree of protection is IP54, and it can also be fabricated into IP55, IP56, IP65, etc. The cooling method is IC411 (with a cooling fan);
• The junction box is located at the top of the base, and can also be made as a right socket or as a 4 socket;
• The motor can be installed with photoelectric encoder, tachogenerator, electromagnetic brake, etc. upon request.

3. Main application areas

Can be used extensively
