PRODUCT DETAILS
1 . Suitable inverter!

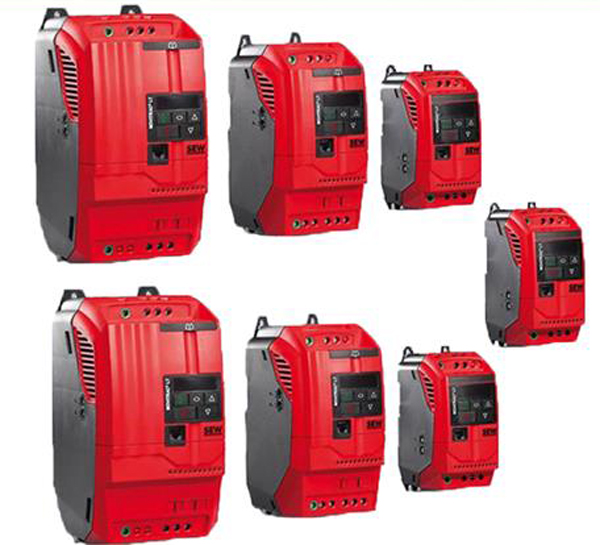

- Our LTE-B series basic inverter features include a wide range of compact functions, simple operation, and quick integration into applications. Available in three sizes, with power ranges from 0.37 kW to 11 kW and line voltage 115V, 230V and 400V, a design developed for asynchronous motor speed control without coding Turns out, LTE-B reliably simplifies your application.
- Basic inverter devices have a number of economic advantages, especially in small conveyors, modules as well as fans and pumps.
- Extremely simple: LTE-B lays the foundation for simple applications - in the field and in control cabinets. Standard version of LTE-B for control cabinet installation with protection class IP20. For field use, an LTE-B drive equipped with an IP66 field enclosure is the most suitable solution.
- Easy to connect to devices with common information, easy to use DFx port.
2 . Products personalized with predefined configuration
- Personalized product details
- CAD data and documentation according to your configuration
- Option to request a direct quote or order
3. Your benefits
- Simple handling
- Thanks to the usable range of the drive, you can ensure your application is deployed quickly.
- Precise protection level
- Easy to choose: IP20, LTE-B for control cabinet installation and IP66 version for field use.
4. Features and options
- Simple operation of the integrated operator unit
- Pre-configured according to the respective engine
- Built-in EMC filter and detachable helper card
- Saving energetic function
- Extremely quiet pulses up to 16kHz
- 40 configurable parameters
- Approved by UL508, Chapter 22.2, Part 14.
- Also available with IP66 / Nema
|
Selection available
|
|
DFx ../ UOH ...
|
Connect to all general purpose devices using SEW port
|
|
LT BP-B
|
Parametric module for data transmission
|
|
LT BG-B
|
External control panel for the installation of the IP54 control cabinet
|
|
BW...
|
Brake resistor
|
|
NF LT...
|
Line filters
|
|
ND LT..
|
Flow line equipment
|
|
HD LT...
|
Output flow device
|
5. Technical specifications
V AC voltage: 1x 115
Line frequency (Hz): 50-60 ± 5%
|
Type LTE-B
|
Capacity range
kW
|
Output power saved
A.
|
Technical specifications
|
Size
width × height × depth （mm）
|
|
0004-101-1-00
|
0.37
|
2.3
|
1
|
79 x 174 x 123
|
|
0008-101-1-00
|
0.75
|
4.3
|
|
0011-101-4-00
|
1.1
|
5.8
|
2
|
104 x 220 x 150
|
Exchange voltage V: 1 × 200-240
Line frequency (Hz): 50-60 ± 5%
|
Type LTE-B
|
Capacity range kW
|
Output power saved A
|
Technical specifications
|
Size width × height × depth （mm）
|
|
0004-2B1-1-00
|
0.37
|
2.3
|
1
|
79 x 174 x 123
|
|
0008-2B1-1-00
|
0.75
|
4.3
|
|
0015-2B1-1-00
|
1.5
|
7
|
|
0015-2B1-4-00
|
1.5
|
7
|
2
|
104 x 220 x 150
|
|
0022-2B1-4-00
|
2.2
|
10.5
|
|
0040-2B1-4-00
|
4
|
15
|
3S
|
126 x 261 x 178
|
Exchange voltage V: 3 × 200-240
Line frequency (Hz): 50-60 ± 5%
|
Type LTE-B
|
Capacity range kW
|
Output power saved A
|
Technical specifications
|
Size width × height × depth （mm） |
|
0015-2A3-4-00
|
1.5
|
7
|
2
|
104 x 220 x 150
|
|
0022-2A3-4-00
|
2.2
|
10.5
|
|
0040-2A3-4-00
|
4
|
18
|
3S
|
126 x 261 x 178
|
Exchange voltage V: 3 × 380-480
Line frequency (Hz): 50-60 ± 5%
|
Type LTE-B
|
Capacity range kW
|
Output power saved A
|
Technical specifications
|
Size width × height × depth （mm）
|
|
0008-5A3-1-00
|
0.75
|
2.2
|
1
|
79 x 174 x 123
|
|
0015-5A3-1-00
|
1.5
|
4.1
|
|
0015-5A3-4-00
|
1.5
|
4.1
|
2
|
104 x 220 x 150
|
|
0022-5A3-4-00
|
2.2
|
5.8
|
|
0040-5A3-4-00
|
4
|
9.5
|
|
0055-5A3-4-00
|
5.5
|
14
|
3S
|
126 x 261 x 178
|
|
0075-5A3-4-00
|
7.5
|
18
|
|
0110-5A3-4-00
|
11
|
24
|
6. Application areas
- Handling applications, like
- Small, modular chain
- Fan and pump
