NEW IE3 ROUTER ELECTRIC ENGINE DRN SERIES
Specification
With a few exceptions, from 1 January 2015 all 2, 4 and 6 pole asynchronous motors rated 7.5 KW or more in the EU, Switzerland and Turkey markets must Meet the requirements of the IE3 rating. Other countries also value and abide by the above.
Our target
IE3 provides a simpler, more powerful and more efficient engine.
Evaluate higher efficiency with almost identical engine frame sizes

PRODUCT DETAILS

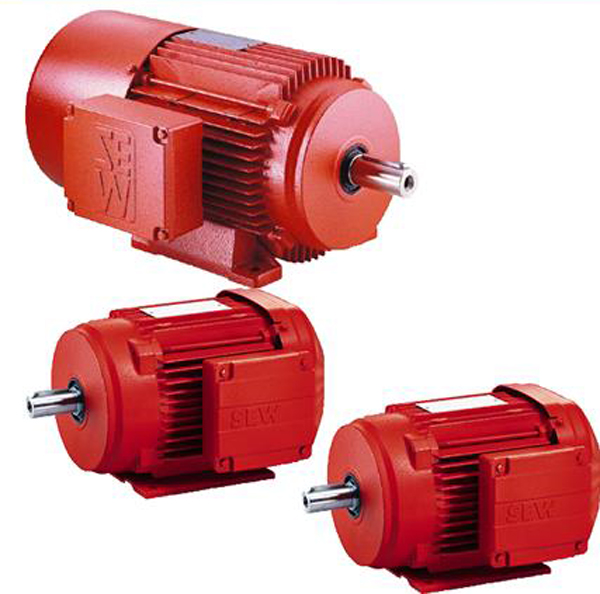

1. DR .. AND DT56 RANGE ELECTRIC MOTORCYCLE (1 SPEED)

  • We can provide you with the ideal AC electric motor for all requirements: 2, 4 and 6 pole motors with capacities from 0.18 KW to 225 KW and rated power between IE1 and IE4. Try our DR motor series!
  • IE1 ~ E4 engines: efficient, powerful and world-friendly
  • Using DR .., we have installed millions of drive combinations worldwide to power a wide range of systems and machines.
  • For your application at SEW it is easy to find the ideal energy saving motor. The design scope of the DR line .. is applicable to efficiency levels that apply globally IE1 to IE4: DR..S applies to IE1; DR..E applies to IE2, DR..N; DR..P applies to IE3; DR .. U match IE4 to choose power and frequency in motor design, which means showing you've considered the most important selection criteria.
  • All remaining available engine options are of course independent of the level of efficiency. A comprehensive brake concept and a cost-optimized integrated encoder will ultimately define the engine range.
  • R .. motor series meets the most important global standards and a variety of local energy efficiency regulations.
  • The DT56 and DR..63 series motors complement the module system vacancy of 90 ~ 370W.
  • Save time and optimize engine selection, ordering, and after-sales processes. As a global supplier, we supply this range of products in 51 countries around the world.
  • Only half of the solution has nothing to do with gearboxes? Then, using our advanced modular system, combine a series of ac electric motors .. with a beveled, parallel, deep, inclined gear motor. Your choice. All of these out-of-price gearboxes are available for use with DR engines .. as a reducer.
  • Of course, we also provide precision inverter technology for the controller and controller. We develop and manufacture all kinds of electric motors by ourselves, so it fits perfectly with our motors and gear motors, as well as your application.

2 . Products personalized with predefined configuration

  • Personalized product details
  • CAD data and documentation according to your configuration
  • Option to request a direct quote or order

3. Your benefits

  • Benefit from energy efficiency
  • Because the DR .. series is designed for efficiency layers, it can be used anywhere in the world.
  • Flexible expansion
  • Because DR .. the modular motor system can provide you with millions of drive combinations - it can be customized according to your needs.
  • Easier to choose a more suitable engine
  • Because our engine range includes 30 performance levels, this means that almost every application has the right engine for it.
  • The DR series .. provides motors suitable for IE1, IE2, IE3 and IE4 performance levels according to IEC 60034-30-1. IE effective and branded nameplate as well as detailed information approved by available countries.
  • In addition to energy saving system products, our energy saving solutions provide professional energy consulting and modular and customized services. Find out more.
  • DRS .. type = IE1
  • 2, 4 and 6 poles
  • Rated capacity: 0.18kW ~ 225kW
  • DRE .. kind. = IE2
  • 2, 4 and 6 poles
  • Rated power: 0.25 kW ~ 225kW
  • DRN .. kind. = IE3
  • ​2, 4 and 6 poles
  • Rated capacity: 0.75 hp ~ 225 hp
  • DR..U type..J = IE4
  • 4 poles
  • Rated power: 0.18kW ~ 3 kW
  • Regardless of the degree of efficiency required, all motor options and designs are equally applicable to all AC motors.
  • Promote world connections
  • The world belongs to the field of application of our AC motor. An engine design corresponds to a level of efficiency. In return, each engine type can be linked to a worldwide network.

4. Characteristics

  • Comprehensive braking concept and combination, meaning that the dimensions of each engine in this range correspond to up to three different brake sizes.
  • Integrated encoder for cost optimization integrated in the engine
  • Save a lot of time by optimizing engine selection, order processing, and logistics processes
  • Efficiency engines IE1 ~ IE4
  • Compact design saves space and costs
  • Facing the future, protecting the environment together (standard)
  • Reducing operating costs with our energy-saving motor, our energy-saving motor meets the efficiency rating
  • Standard efficiency (IE1)
  • High efficiency (IE2)
  • Extremely high performance (IE3)
  • Extremely efficient (IE4)
  • Global Motors integrates several energy efficiency codes and regulations into one design.
  • DR .. DR series .. Motor supports global standards and specifications

5. Technical data



Extract technical notes

Frequency : 50 Hz

Frequency : 60 Hz

Standard voltageV

230/400 V or
400/690

380,
440,
460 or
480

IE2 global electric motor Standard voltage
V

220 - 242/380 - 420 or
380 - 420/660 - 725

254 - 277/440 - 480 or
440 - 480/--

IE3 global electric motor Standard voltage
V

220 - 230/380 - 400 or
380 - 400/660 - 690

460



 Level E



Number of poles



Engine type

The frequency is 50 Hz



The frequencies are 60 Hz and 50/60 Hz

Wattage kW

Wattage kW

Wattage hp

No IE ratings

2- Level

DR63..

0.18 – 0.37

0.18 – 0.37(60 Hz)

0.25 – 0.5

3-Level

DT56../DR63..

0.09 – 0.25

0.09 – 0.25(60 Hz)

0.1 – 0.34

6- Level

DR63..

0.09 – 0.18

0.09 – 0.18(60 Hz)

0.1 – 0.25

IE1

2- Level

DRS..

0.37 – 9.2

0.37 – 9.2

--

3- Level

0.18 – 200

0.37 – 225

0.5 – 300

7- Level

0.25 – 7.5

0.25 – 7.5

0.34 – 10

IE2

2- Level

DRE..

0.75 – 9.2

0.75 – 9.2

1 – 10

3- Level

0.37 – 200

0.37 – 225

0.5 – 300

6- Level

0.25 – 5.5

0.75 – 5.5

1 – 7.5

IE3

2- Level

DRN..

0.75 – 7.5

0.75 – 7.5

1 – 10

4-Level

DRN..

0.75 – 200

0.75 – 225

1 – 300

6- Level

DRN..

0.75 – 7.5

0.75 – 7.5

1 – 10

IE4

4- Level

DRU...J

0.18 – 3

--

--

Energy efficiency specifications
On the nameplate

IE class classification efficiency values ​​during line operation at frequencies 50 Hz and 60 Hz
- USA: EE Label (DoE, Department of Energy, Authorized EISA, 2007)
- Canada: CSA (Energy Authentication) label (EER 2010)
- China: CEL label (GB 18613)
- Brazil: ENCE label
- Korea meets the KEL label for REELS 2010

No additional information on name tag

- Meets US design standards Nema MG1
TEFC, TEBC and TENV, depending on ventilation type
- Code K.V.A. K.V.A., short-circuit power supply code character (installation location),
- M.L.UL has registered a four-digit code for the installation location
Design code, code character initialize performance and fault torque and start current rate
Temperature range meets Canadian design specifications
CSA C22.2 SEW-EURODR..IVE certified up to + 40 ° C
Effective in accordance with CSA C390
- Information about the inverter's operation
Certificate of eligibility
- Europe: CE label
- USA: UR label (from UL)
Canada: CSA label
China: CCC label should comply with GB 12350 (depending on rated capacity) if needed
-EAC: Eurasian consistency (as of March 2015)

6. Application areas

  • Application requires mechanical error protection brake
  • Various specifications of logistics conveyors
  • Application upgrade
  • The application requires control accuracy
  • Integrate or install encoder locator action
  • Can be used in various industries around the world
