CAKE PUMP - GENUINE-REASONABLE PRICE-PRESTIGE-QUALITY.

CAKE PUMP - GENUINE-REASONABLE PRICE-PRESTIGE-QUALITY.

| Code Product : MS-251 | Views : 201
Call

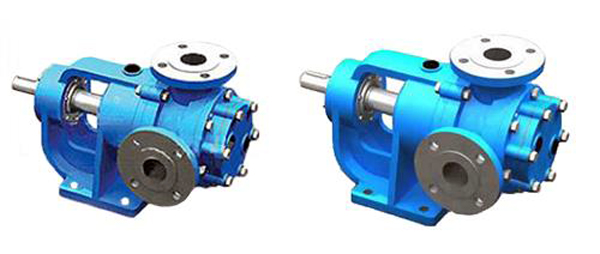

NYP 24 MS gear pump with rotation speed of 720 rpm. Flow rate of 364 l / min and maximum pressure of 10 bar, size 50mm. Specialized pump for pumping asphalt, hot resins, thick glue, molasses and high viscosity substances. The pump has two layers of coating used to pour the insulation oil when the pump is thickened or in low temperature weather.

PRODUCT DETAILS

The NYP 24 MS gear pump is an inner-coupling gear pump specially made to pump highly viscous substances such as tar, molasses, etc. The pump is made by Hebei Hengsheng- China. genuine coordination by the company ANH MINH LONG in Vietnam.

1. Specifications and models of the same type:

Model Electricity supply (V) Áp lực(bar) Salary (m2/h) Speed (RPM) Temperature (Celsius degree) Material  Felt Size (mm)
NYP 7.0 MS 380 10 99.8 1450 80 SS304 cơ khí  40
NYP 24 MS 380 10 166 720 80 gang  cơ khí  50
NYP52 GP 380 10 364 720 80 SS304 cơ khí  50

2. Working principle of the inner gear pump

Active and passive wheels are always eccentric. When the active gear rotates, the passive wheel rotates in the same direction in the stator, the liquid in the teeth grooves in the direction of the rotation of the gears transport from the suction chamber to the thrust chamber according to the pump housing. The suction compartment and the push compartment are separated from each other by a screen. In general, the gear pump is difficult to manufacture, resulting in a high cost.

3. Advantages of the pump line

The pump has the outstanding advantage of being able to pump substances with high viscosity and high temperature that other pumps cannot

Compact pump, good quality, with little failures

4. Application of internal gear pump

The NYP 24MS gear pump is an internal gear pump series that has the advantage of pumping high temperature substances and substances with a viscosity range (20-60,000 CST).

The pump is used in factories that manufacture asphalt, asphalt concrete, honey and molasses, and colloids.

Specialized pumps for efficient fuel oil, waste oil pump.

To be consulted about choosing to buy gear pumps, customers need to provide us with information about pump substances, viscosity and temperature of pumps, we will advise customers on the most effective and most cost-effective pumps for customers.
