1 . Details determined

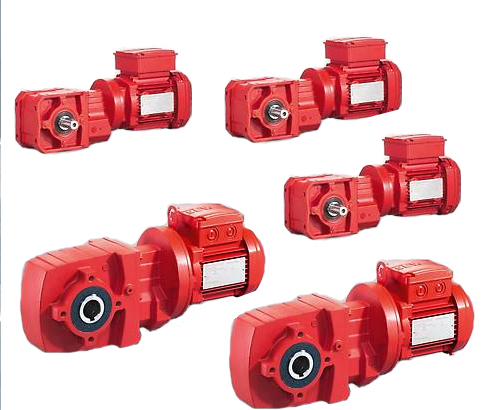

• The gearbox body is made of aluminum, which is very light in weight. Thanks to special gears and lifetime lubrication, maintenance requirements are very low, ensuring reliable and long-lasting operation. No compromises: W perpendicular reducers fit almost any drive task thanks to a wide variety of design options.
• Using the modular concept, the W series reducer is connected to AC motor to form W right angle motor, and connected to servo motor to form W right angle servo motor. You can also choose AC motor or servomotor that meets your requirements.

2 . Products personalized with predefined configuration

• Personalized product details
• CAD data and documentation according to your configuration
• Option to request a direct quote or order

3 . Đặc điểm ưu thế

• Hoạt động hiệu quả
• Giảm thiểu tổn thất ma sát với ổ , không hao mòn và tổn thất
• Nhẹ và nhỏ gọn
• Vỏ nhôm và hộp số được thiết kế đặc biệt.

4 . Product characteristics

• Powerful perpendicular gearbox:
• Non-wear transfer (which combines iron material with steel) and special tooth surface mount
• Minimize friction loss, optimize mechanical efficiency and reduce energy consumption
• Active / anti-vibration
• Reducing the speed ratio of the reducer for high engine power and high speed
• Aluminum body, light weight

5 . Installation:

• The mounting holes of the stand and base plate are the same, so a wide range of mounting positions are available.
• Gear reducer settings W10, W20, W30:
• Independent lubrication levels are set in these products
• Variations available:
• Brackets or flange mounting
• Attach a B5 or B14 flange
• Solid or hollow shaft
• Install an adapter
• Asynchronous motor installation:
• For size reducer W10, W20, W30: Direct connection with motor
• For size reducer W37, W47: motor flange mounting
• Options available:
• for example gearboxes perpendicular to the integrated frequency converter
• for example, the gearbox is perpendicular to the integrated protection and switch

6 . Technical data

7 . Application areas

• Small fast conveyors in internal logistics
• Roller conveyor
• Conveyor
• Chip conveyor
• W10, W20, W30 specifications:
• Especially suitable for working environment sensitive to noise
• W37, W47 specifications:
• Shaft mounting design, especially suitable for hygienic industries such as the food and beverage industry
