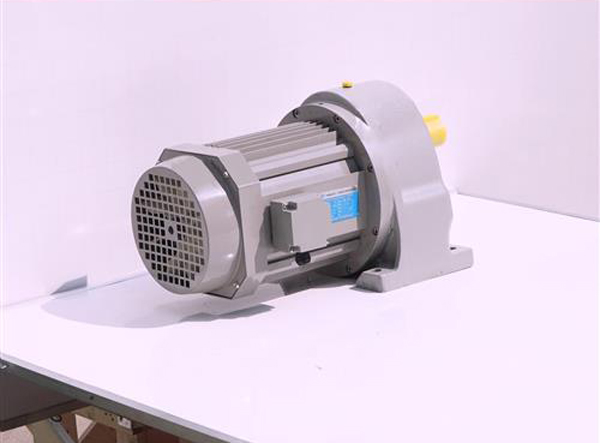

MOTOR REDUCER 3.7KW 5HP-GENUINE-BEST PRICE-PRESTIGE-QUALITY.

MOTOR REDUCER 3.7KW 5HP-GENUINE-BEST PRICE-PRESTIGE-QUALITY.

| Code Product : MS-261 | Views : 180
Call

- Speed: 4 pole
- Ratio: 1 / 10-1 / 80
- Power: 3.7KW 5hp
- Diameter of reinforced shaft: 50mm

PRODUCT DETAILS

- Geared motors: are used very widely in industry such as factories using conveyor belts for food, making construction materials and chemicals, warehouses, production lines ... high efficiency.

Geared motor 3.7Kw 5HP speed 4 pole, transmission ratio ratio 1 / 10-1 / 80, with a frequency of 50hz motor equivalent different force. The motor has a compact and light design, the ball bearing gear details are definitely bearing, high heat resistance to help it operate continuously and ensure durability.

- Geared motors are manufactured according to Australian technology, ISO 9001 quality products are exported to the US and Europe, and geared motors have brought many great achievements in industrial factories. With the gear temperature system that increases the hardness and wear resistance, the Australian technology gear motor generation is a big breakthrough.

Geared motors are used in many fields of life and industry such as: chemical stirring, wiping mud in wastewater treatment systems, chemical production, conveyor belts, cement production lines. , food industry, animal feed, crane cranes, wharves, construction machines, concrete batching plants, paper factories, alcohol, ...

The structure consists of two main parts: Motor and gearbox: The structure of the stator includes coils of three electric phases wound on iron cores arranged on a ring to create a rotating magnetic field and the Roto has a shape The cylinder acts as a coil wound on the steel core. The inner gearbox contains an actuator that uses gears, screws ... to reduce the speed of rotation. This box is used to reduce angular speed, increase torque and be an intermediate part between the electric motor and the working machine working part.

Specifications of the deceleration motor 3.7Kw 5HP



Speed 4 pole
Ratio 1/10-1/80
Wattage: 3700W- 5hp
Diameter of reinforced shaft: 50mm

The output shaft speed of the deceleration motor corresponds to the Ratio ratio

Ratio Output speed
1/10 ~ 150 RPM
1/15 ~ 100 RPM
1/20 ~ 75 RPM
1/30 ~ 50 RPM
1/40 ~ 37.5 RPM
1/50 ~ 30 RPM
1/60 ~ 25 RPM
1/80 ~ 19 RPM
